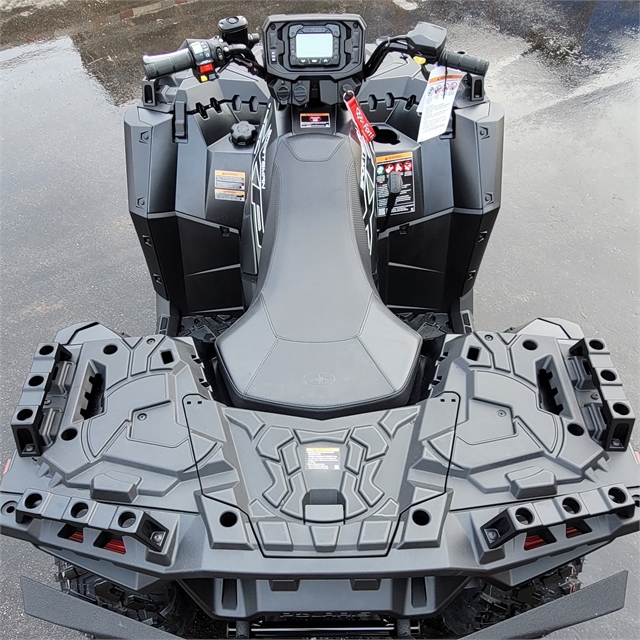

2023 Polaris Sportsman XP 1000 Ultimate Trail

$500 REBATE!

Stock #A2499
MSRP: $15,499 USD

213 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2023 Polaris Sportsman XP 1000 Ultimate Trail . I'm in the area and you can reach me at or by phone at
Description

Sportsman XP Ultimate Trail

Grab hold of your outdoor adventure with the freedom provided by the Sportsman XP 1000 Ultimate Trail. Engineered with unrelenting power and legendary suspension and handling. Enjoy ultimate freedom with the ultimate Sportsman.

  • 90-Horsepower ProStar Engine
  • True On-Demand All-Wheel Drive
  • LED Lower & Pod Lighting
  • Multi-Select Electronic Power Steering
  • 27" Duro Tires on 12" Aluminum Wheels
  • 3,500 lb Polaris HD Winch
  • Front & Rear Ultimate Series Bumper
  • 1,500 lb Towing Capacity

MSRP: $15,499.00

FREIGHT & SET UP: $905.00

TOTAL MSRP: $16,404.00

Call or text our sales staff to get our Best Cost Price. 920-446-3220



  • Status:
    New
  • Vehicle:
    2023 Polaris Sportsman XP 1000 Ultimate Trail
  • VIN:
    4XASXZ955PB212499
  • Model Number:
    A23SXZ95AK
  • Color:
    Stealth Black
  • Stock Number:
    A2499
  • Title:
    Clear
  • Location:
    Fort Fremont Marine
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Rear
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.56
  • Bore (mm):
    90.5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    11
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    952
  • Displacement (ci):
    58.1
  • Engine Brand Name:
    ProStar™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    42
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    90
  • Horsepower (kW):
    67.2
  • Starter:
    Electric
  • Stroke (in):
    2.91
  • Stroke (mm):
    74
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Composite
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

PAINT & FINISH

  • Metallic:
    Yes

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    37
  • Seat Height (mm):
    940
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    110
  • Capacity (kgs):
    55
  • Capacity (lbs):
    120
  • Capacity (lbs):
    240
  • Number Of Cupholders:
    1

SUSPENSION

  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    9
  • Front Travel (mm):
    229
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    10.3
  • Rear Travel (mm):
    260

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    395
  • Dry Weight (lbs):
    871
  • Engine Displacement to Weight (cc):
    1.09
  • Fuel Capacity (gal):
    5.3
  • Fuel Capacity (l):
    19.9
  • Ground Clearance (in):
    12
  • Ground Clearance (mm):
    305
  • Height (in):
    50.8
  • Height (mm):
    1289
  • Length (ft):
    6.94
  • Length (ft/ft):
    6
  • Length (ft/in):
    11.3
  • Length (in):
    83.3
  • Length (mm):
    2114
  • Payload Capacity (kgs):
    261
  • Payload Capacity (lbs):
    575
  • Towing Capacity (kgs):
    680.4
  • Towing Capacity (lbs):
    1500
  • Turning Radius (ft):
    7
  • Wheelbase (in):
    53
  • Wheelbase (mm):
    1346
  • Width (in):
    47.6
  • Width (mm):
    1209

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    3.2
  • Size (in):
    1.25
  • Weight (kgs):
    1587.6
  • Weight (lbs):
    3500
  • Winch Brand Name:
    Polaris

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    Polaris Variable Transmission (PVT)
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Duro
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Duro
  • Wheels Composition:
    Aluminum

Our Location

Fort Fremont Marine
(Exit 267) 8969 County Road II
Fremont, WI 54940
